PGX™ Commercial Charging 3-Port Dock
Each EGO Commercial PGX™ Commercial Charging 3-Port Dock charges three batteries simultaneously, and up to 24 docks connect to a single PGX™ Commercial Charging 1600W Hub (available separately) to charge up to 70 batteries overnight from one 15A outlet.
Manual & Parts
SIMULTANEOUS CHARGING
CHARGES UP TO 70 BATTERIES OVERNIGHT
FLEXIBLE MOUNTING OPTIONS
NO ELECTRICAL UPGRADES REQUIRED
Description
EGO Commercial’s PGX™ Commercial Charging system is a flexible charging solution that scales to your business. Each PGX™ Commercial Charging 3-Port Dock charges three EGO 56V ARC Lithium™ batteries simultaneously when connected to the PGX™ Commercial Charging 1600W Hub (available separately). The charging system is scalable, with up to 24 PGX™ Commercial Charging 3-Port Docks connected to a single 1600W Hub to charge up to 70 EGO 56V 2.5Ah ARC Lithium™ batteries—or up to 15kWh—overnight from any standard 15-amp, 120-volt circuit—no electrical infrastructure upgrades required. Each 3-Port Dock includes battery power status LEDs plus an integrated locking bar for secure battery storage. Each 3-Port Dock has seven mounting points including steel-reinforced screw through-holes for mounting the dock on the walls of a building, van, or trailer. They are also E-Track- compatible via the PGX™ Commercial Charging E-Track Mounting Kit (available separately). Docks are easily connected to each other via an included 2-foot power cable. Work all day, charge overnight with the PGX™ Commercial Charging system. Maximize uptime and grow your business with the powerful tools, smart tech, and scalable charging solutions of EGO Commercial.
Features
- Each 3-Port Dock simultaneously charges up to three EGO 56V ARC Lithium™ batteries when connected to the PGX™ Commercial Charging 1600W Hub (available separately)
- Up to 24 PGX™ Commercial Charging 3-Port Docks can connect a single 1600W Hub (available separately) to charge up to 70 2.5Ah batteries overnight from one standard 15A outlet

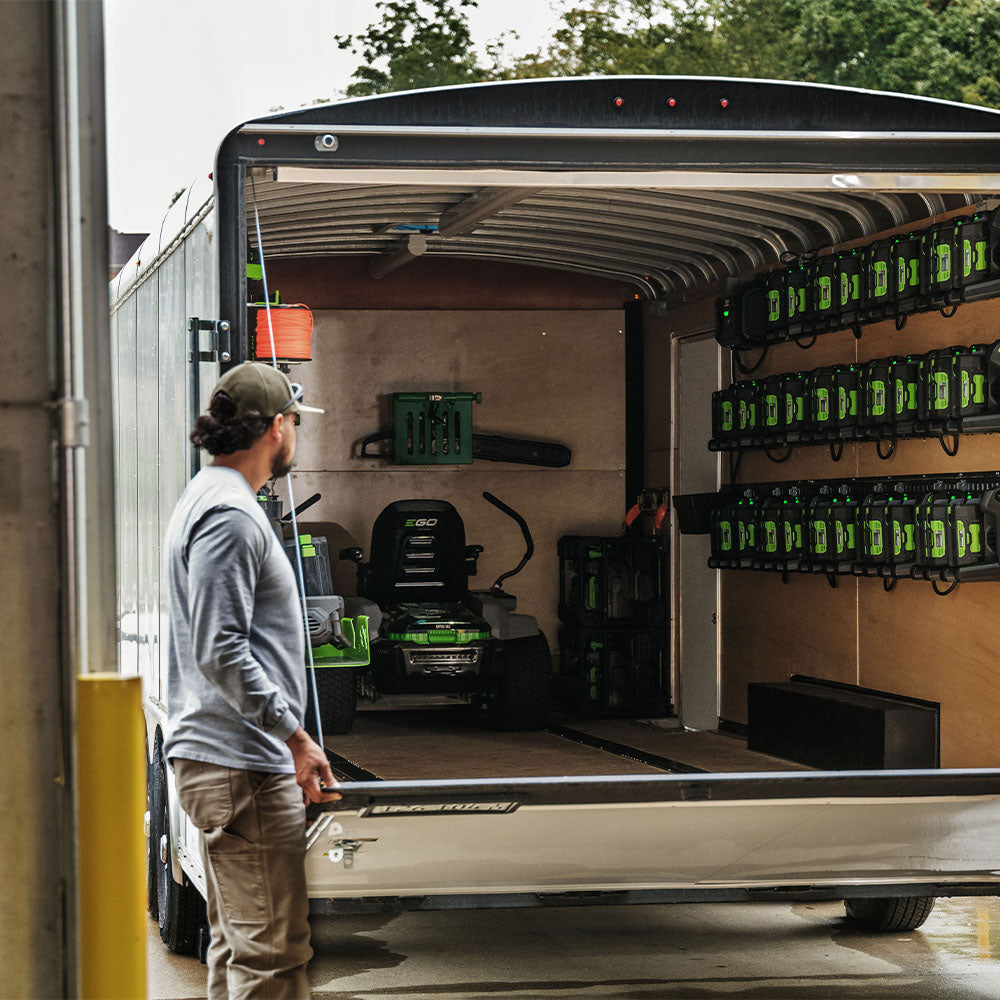

- Steel-reinforced through-hole screw mounting with seven mounting points to securely mount in a building, van, or trailer
- E-Track mounting-compatible via PGX™ Commercial Charging E-Track Mounting Kit (AEK1000, available separately)
- LED lights display battery charge status
- Integrated locking bar (requires 7mm shackle padlock) for secure battery storage
- Includes PGX™ Commercial Charging 2’ Power Cable
- Two-year commercial use warranty when registered within 90 days of purchase
Frequently Asked Questions
Does PGX Charge all at once or sequentially?
When connected to the PGX Hub, each 3-Port Dock can charge 3 batteries simultaneously. When multiple docks are connected, each 3-port dock will charge in series once the previous dock charging is complete.
Is it best to place my fully discharged batteries in the dock closest to the hub?
The Fleet app allows you to set the priority of which docks you’d like to charge first. If you don’t set the priority, the hub will charge the batteries in the first connected dock first.
Used with a trailer, what are the specs for using an extension cord with 1600W charger?
The PGX Hub can be used with an extension cord up to 100ft, at least 10 gauge.
Which battery is compatible with this charger?
All EGO batteries are compatible with all EGO chargers.
